Wide Gutter Aluminum Roofing Sheets Corrugation Machines

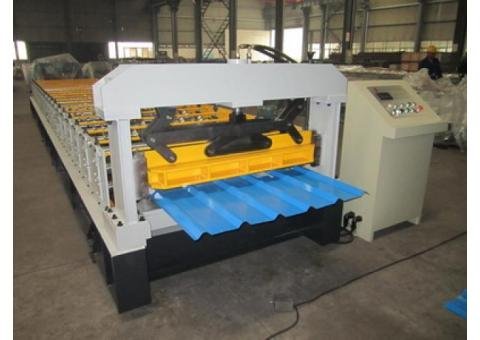

We are a professional manufacturer and exporter for aluminium corrugating machinery. The range of our products are long span (wider gutter)roofing sheets corrugating machine, steptile roofing sheet corrugating machine, metcopo steptiles corrugating machine, ridge caps corrugating machine, flat sheet pressing machine for ridge, angle, facial board and flashings, cameroon zinc roof sheet corrugating machine. The advertised corrugating machine is a complete automatic production machine for making alluminium long span roofing sheets with wider gutters. It consists of decoiler, guilding device, roll forming machine, cutting device, supporting tables and Mitsubishi PLC control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALUZINC) Simple or Prepainted in COILS
Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 15~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about our aluminium corrugating machines, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
