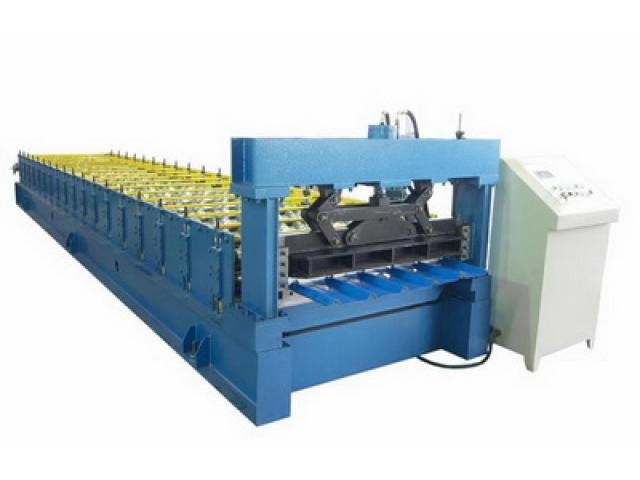

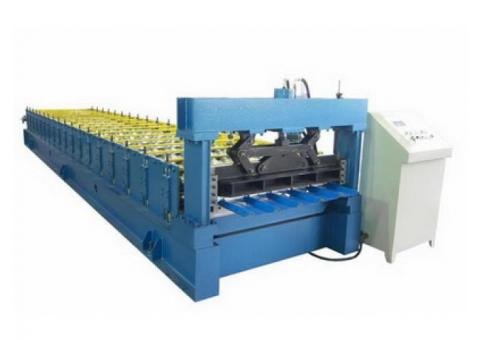

Trapezoid Profile Aluminum Roof Cladding Panel Roll Forming Machine

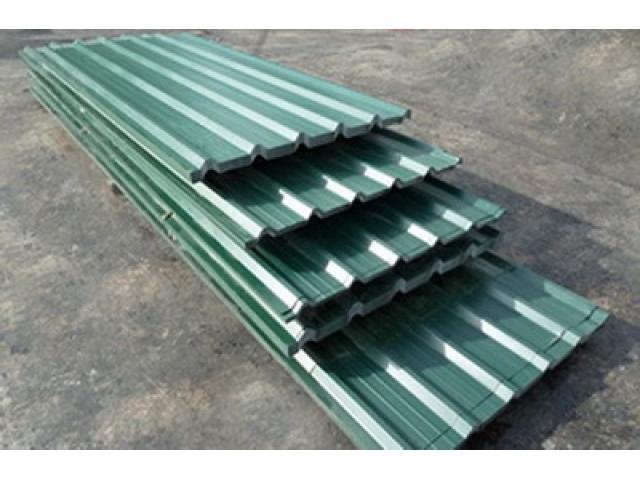

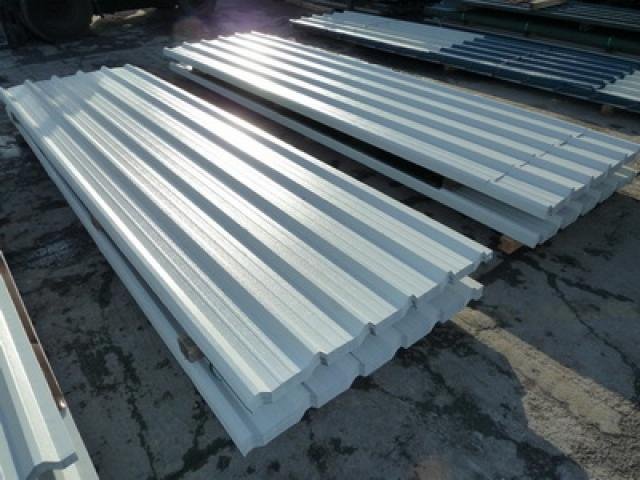

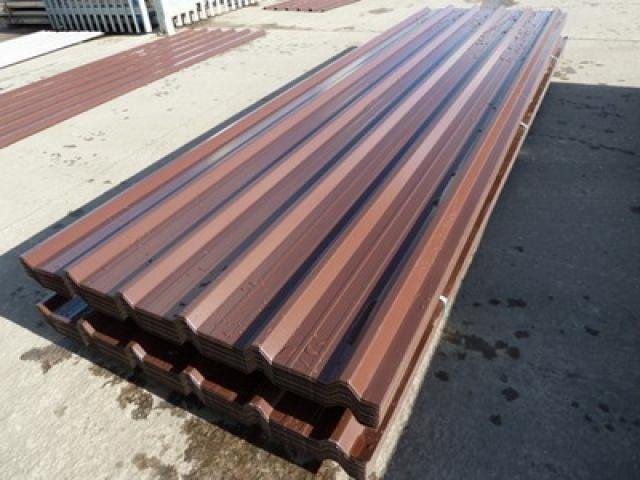

We are supplying customers with corrugated aluminium roofing sheets corrugation machine. This aluminium roof sheet corrugation machine is an advanced metal roll former, which is manufacturing corrugated long span roofing sheets with a high speed. The trapezoidal shaped aluminium rollformer consists of decoiler, sheet guiding equipment, rollforming system, cutter, support table, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm

Galvanized Steel Sheets in COILS (ex: JIS 93 302)

Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)

Galvalume Steel (ALUZINC) Simple or Prepainted in COILS

Aluminium Sheets in COILS (ex: AA 5005 & 3003)

2. Hydraulic decoiler Max. Capacity: 5000KGS

3. Controlling system: PLC

4. Main machine power: 5.5kw

Hydraulic station power: 2.2kw

5. Working speed: 18~20m/min

6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi

7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this trapezoid profiled aluminium roofing sheet roll forming machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com

Mobile: +0086 158 6814 2550

Place of Origin: China
