Straight Long Span Roof Cladding Sheets Corrugation Machine

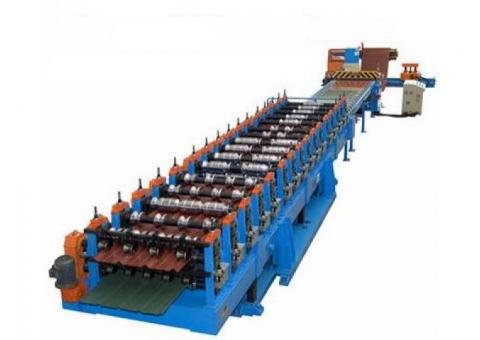

As a professional manufacturer of aluminium corrugating machines in China, we are supplying customers with all kinds of rollforming equipment to produce straight aluminium long span roofing sheets, aluminium metcoppo tile sheets, aluminium steptiles roofing sheets, gutter panels, flashing board and so on. The advertised straight aluminum long span roofing sheet corrugating machine is manufacturing alluminium regular straight long-span roof cladding sheets with a high speed. This aluminium straight roof cladding panel rollformer machine consists of decoiler, sheet guiding equipment, rollforming system, cutter, support table, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm-0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALUZINC) Simple or Prepainted in COILS
Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: Mitsubishi PLC control panel, transducer and touching screen imported from Japan
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this aluminium straight longspan roofing sheet corrugating machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
