Alluminium & Steel Step Tile Roof Sheets Roll Former

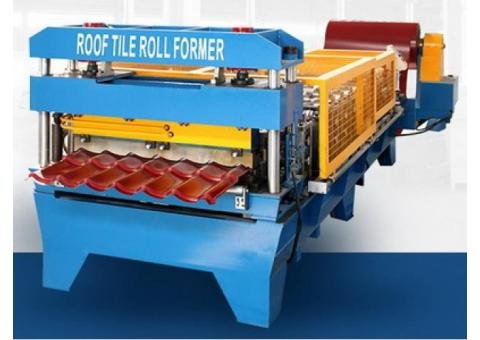

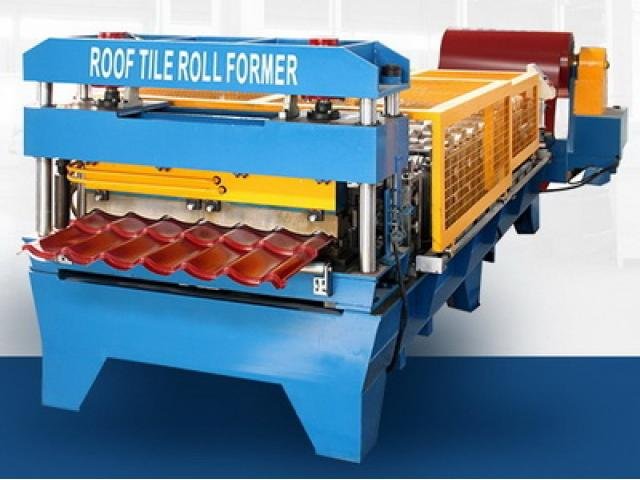

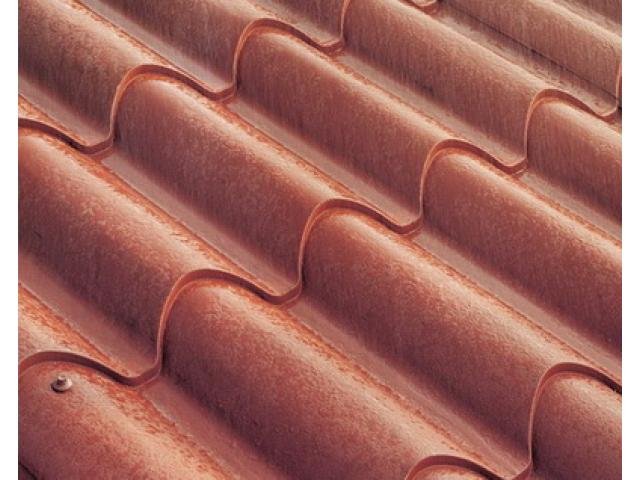

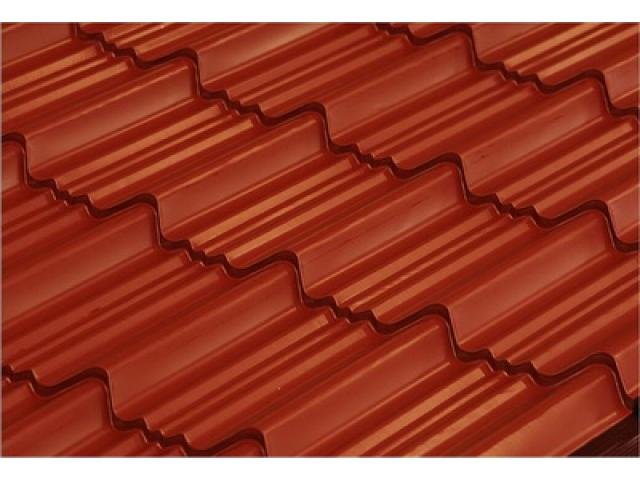

As a professional manufacturer of metal roof profile sheet rollformers, we are supplying customers with all kinds of roll former machines to make normal corrugated longspan roofing sheets, metcoppo tile roof sheets, alluminum steptiles roofing sheets, rain gutter panels, flashing board and so on. The advertised metal step tiles rollformer is making alluminium & Iron step tile roof cladding sheets with a high quality. This stepped tiles roofing sheet roll former machine consists of decoiler, sheet guiding equipment, rollforming system, pressing device, cutter, support table, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm-0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (PPGI)
Galvalume Steel (ALUZINC) Simple or Prepainted in COILS
Colored Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 5.5kw
5. Working speed: 3-4m/min
6. PLC: Mitsubishi PLC control panel, transducer and touching screen imported from Japan
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this steptile roofing sheet rollformer, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
