Colored Iron IBR Profile Chromadek Roof Cladding Panel Roll Forming Line

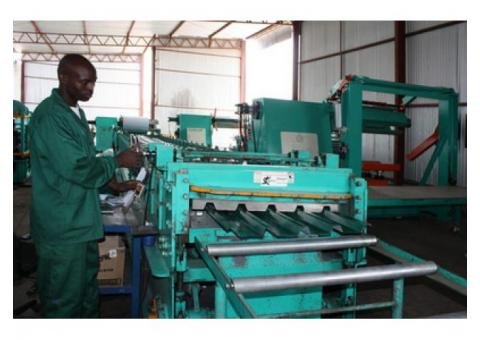

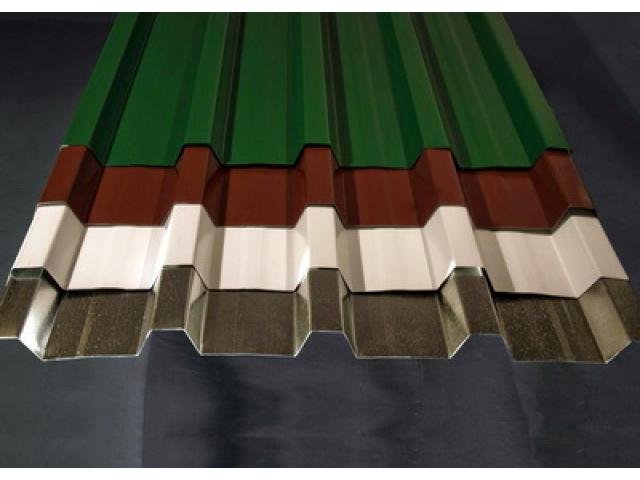

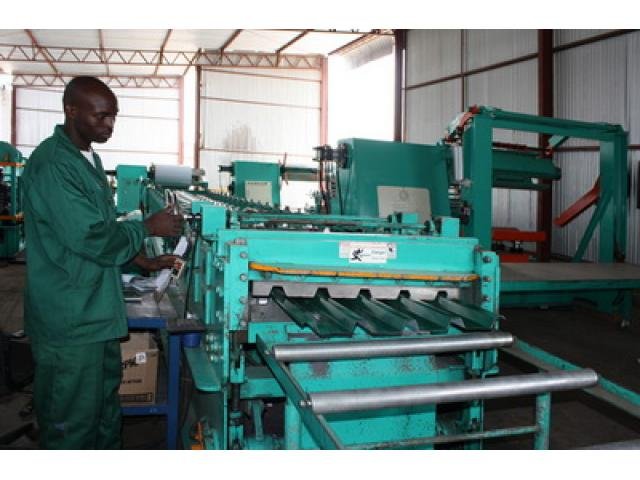

We are supplying customers with all kinds of metal roll forming machinery, such as corrugated iron roof sheet making machine, color painted IBR profiled roofing sheets manufacturing machine, glazed roofing tile roll former machine, ridge cap roll forming machine, C & Z purlin roll forming machine, floor deck roll forming machine, stud & track forming machine, rolling shutter slat roll forming machine and so on. This metal roll forming machine is an advanced metal rollformer, which is manufacturing corrugated IBR profiled chromadek roofing sheets with a high speed. The whole roof panel production line consists of decoiler, sheet guiding equipment, roll forming system, cutter, support tables, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALU ZINC) Simple or Prepainted in COILS
Prepainted Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this prepainted colour steel IBR profile chromadek roof panels roll forming machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
