Metro Type Long Span Aluminum Roofing Sheet Machine

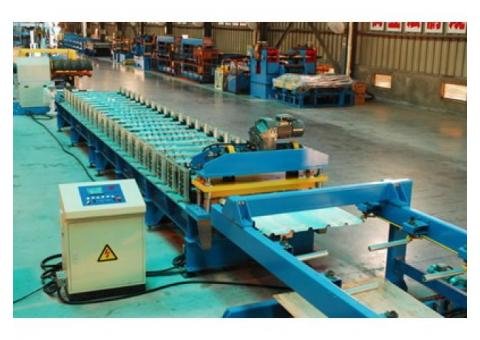

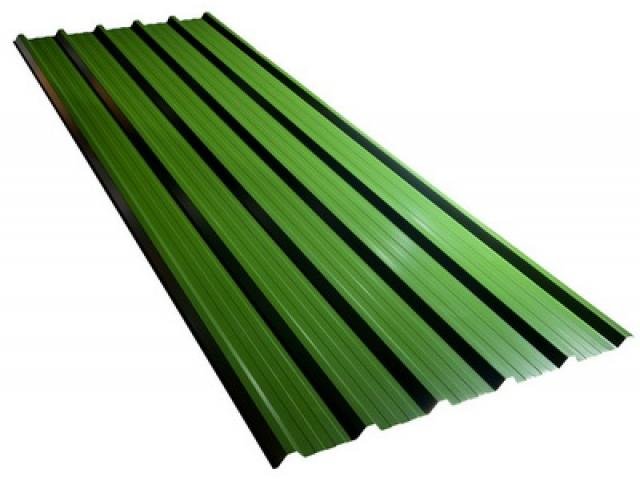

We are supplying customers with all kinds of metalworking machine, such as long span roof sheet machine, step tile roofing sheet machine, met coppo tile roofing sheet machine, ridge caps bending machine and so on. This roof sheet roll forming machine is an advanced metal working rollformer, which is manufacturing metro type pre-painted long-span roofing sheets with a high speed. The roof panel machine consists of decoiler, sheet guiding equipment, roll forming system, cutter, support tables, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanised Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALU ZINC) Simple or Prepainted in COILS
Prepainted Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this metro type longspan aluminium roof machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
