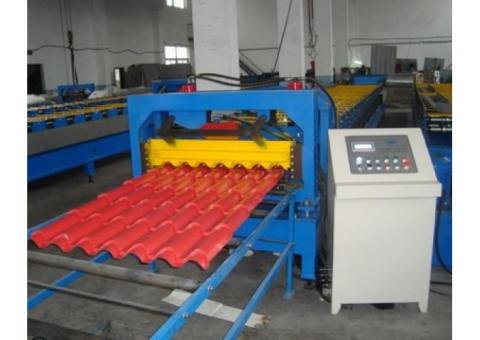

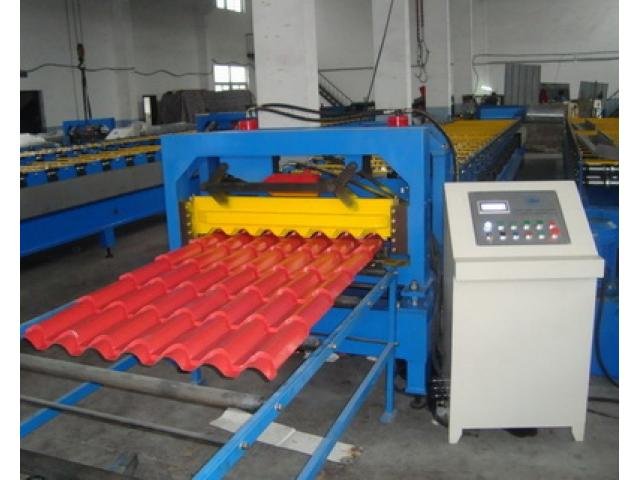

Metcopo Step Tile Aluminum Roof Sheets Rolling Machines

We are supplying customers with all kinds of metal sheet rolling machies, such as long span roof sheet rolling machine, steptiles roofing sheet rolling machine, met coppo tile roofing sheet rolling machine, ridge caps rolling machine and so on. This roof met copo steptile sheet rolling machine is an advanced metal roll forming machine, which is manufacturing metcoppo step tile roofing sheets with a high quality. The roof panel rolling machine consists of decoiler, sheet guiding equipment, roll forming system, stepped tile presser, cutter, support tables, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALU ZINC) Simple or Prepainted in COILS
Prepainted Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 5.5kw
5. Working speed: around 3m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this metcoppo step tiles alluminium roofing sheet rolling machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
