CORRUGATED WIDESPAN PROFILED ROOF CLADDING SHEETS ROLLFORMER

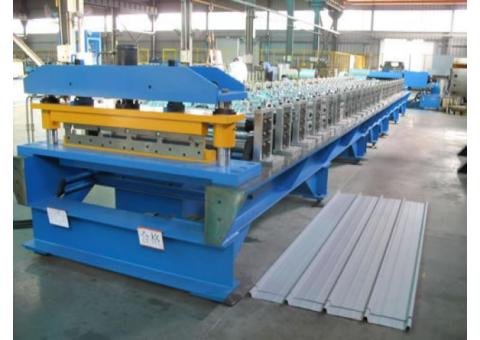

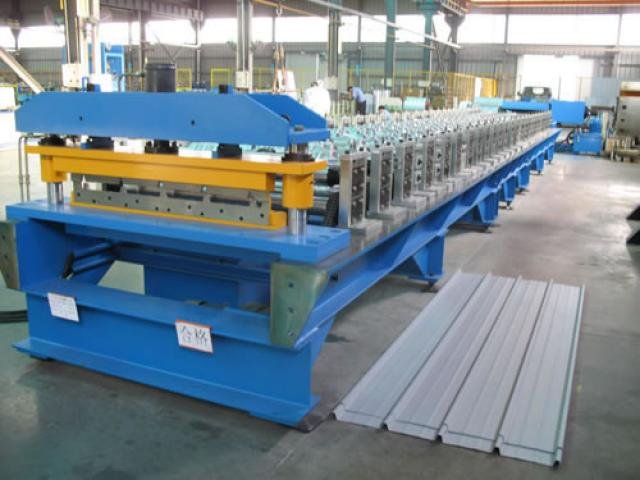

This metal roofing sheets making machine is an advanced metal roll former, which is manufacturing widespan profile roof sheet with a high speed. This roof cladding sheet roll forming machine consists of decoiler, sheet guiding equipment, rollforming system, cutter, support table, hydraulic system, and control system.

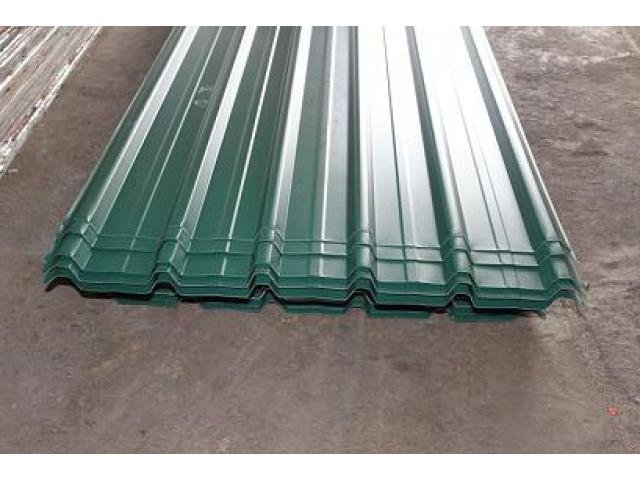

This profile is a roofing and cladding profile, designed to provide the building and construction industry with an economical alternative (10 % saving) to the IBR profile, without sacrificing the popular fluted concept. The Widespan profile offers greater spans and lower slopes than the traditional corrugated profile, while providing the same cover width as the 10.5 corrugation sheet. The Widespan profile therefore has an effective cover of 762mm and is manufactured in thicknesses (gauges) from input material, ranging from 0.27mm to 0.8mm.

MAIN PARAMETERS:

1. Material Spec. Q345 or 34 KSI; Thickness: 0.4mm to 0.7mm
Prepainted Aluminium & Galvanized Zinc Steel & Aluzinc Iron
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 4kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this trapezoid profile widespan roof sheets rolling machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
