Description

We have sold this machine to "Nigeria" and etc. Welcome to write e-mail to us.

Detailed Product Description





Structure is simple, neat exterior appearance, because the main machine use steel structure ,machining before jointing



1. Brief Introduction

This Tile forming machine can form the steel or Aluminum sheet according to customer’s requirement continuous, and then automatically cut to length. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realize the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for metal roofing tile. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.

2. Technical Parameters



No

Item

Parameter

Note

1

Suitable



Material

Type

Aluminum sheet



Width(mm)

1220



Thickness(mm)

0.35-0.7



Yield stress

235MPA



2

Product Specifications

Cover width

1000mm±5

Detail as the attached drawing

Step length(mm)

Min 100mm

Step height(mm)

20±0.5

Length

Any length

3

Power Requirement

Type

380V/3PH/50HZ



Main motor power(KW)

5.5



Cutting power(KW)

5.5



4

Max Working Speed(m/min)

5

Including time of cutting and pressing

5

Automatic



Decoiler



(Optional)

Type

Hydraulic



Max. capacity(T)

5 T



Suitable coil OD(mm)

1200



Suitable coil ID(mm)

508



Max Coil width(mm)

1250



6

Forming Stand

20

Depend on actual design

7

Forming Shaft Diameter(mm)

80

Depend on actual design

8

Type of Cutting

Roll-formed and length-set cutting



9

Control System

Mitsubishi PLC and inverter



10

Finished table

2 m × 2



11

Installation Dimension(m)

16 ×3.5

Without the panel length

12

Total Weight(T)

Around 10

Depend on actual design



Working Process

Decoiling the sheet----Sheet guiding----Roll forming----Pressing the step Measuring length----Cutting after shaping----Panels to the stacker

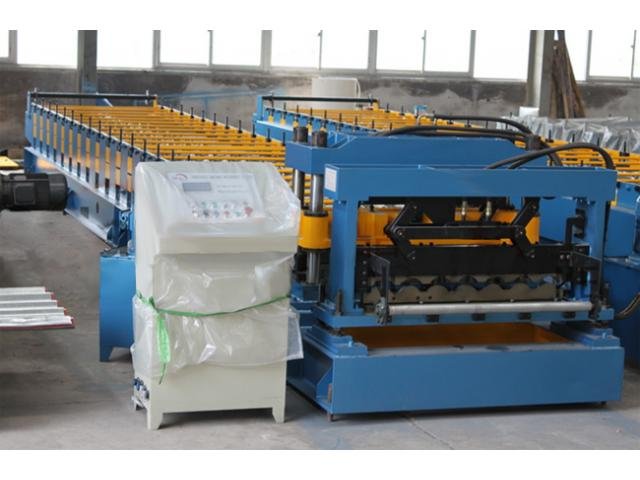

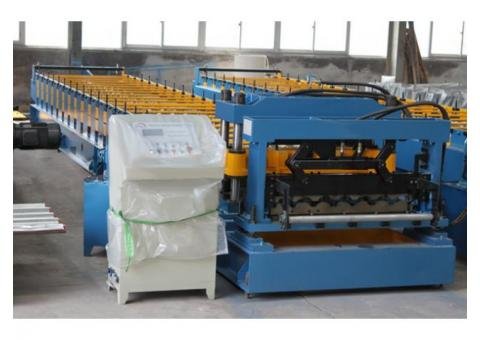

2. Machine photo

European Style Metcopo Step Tile roll forming Machinery Factory



Shipping photo

European Style Metcopo Step Tile roll forming Machinery Factory

Profile Drawing:





Contact us:

European Style Metcopo Step Tile roll forming Machinery Factory

4. Main machine price

FOB Shanghai: $50,000.00USD----60,000.00USD

5. Payment (T/T)

40% as deposit, 60% is paid by T/T before shipment.

6. Delivery time: 90 days



Service rules:

A. In correct operating & maintaining ,the machine is guaranteed for one year since leaving the seller’s factory excluding the electric elements.

B. If necessary ,the seller will dispatch a technician to the buyer’s factory abroad to install &regulate the machine ,the service charge is USD50.00 for one technician .the buyer will assist the seller’s technician to get the visa and will pay for the flight tickets and the local accommodation.

C. Guarantee one year for machinery
