Dual Layers Aluminum Roof Sheets Roll Forming Line

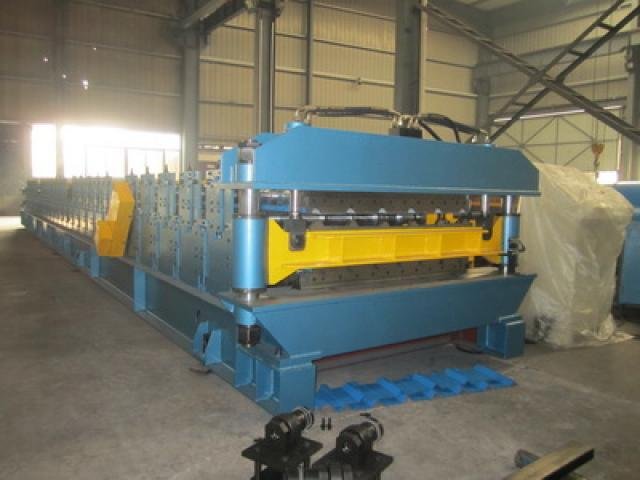

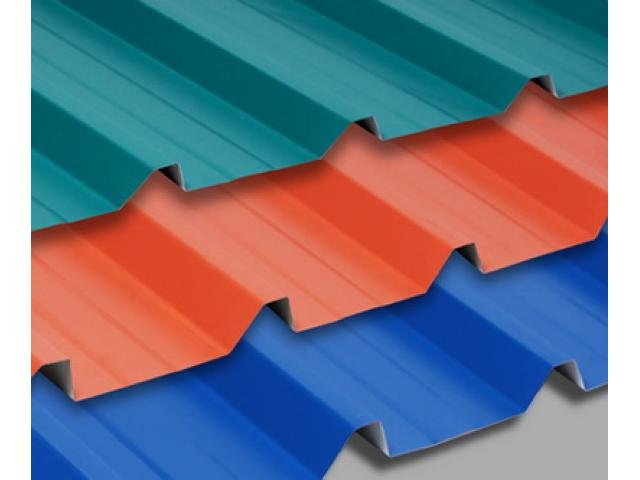

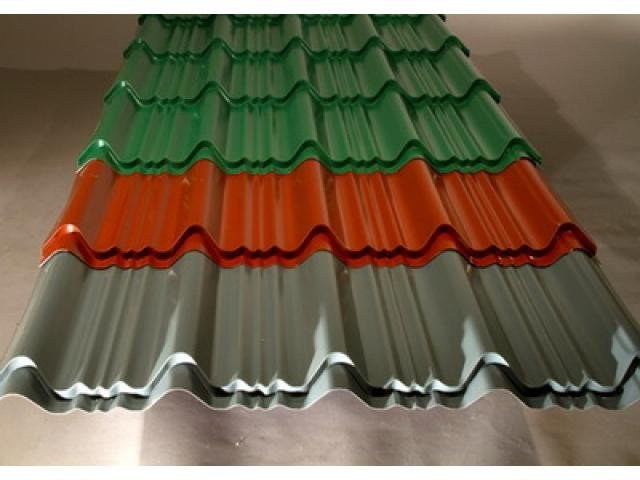

The advertised roll forming machine is an advanced rollformer which owns two decks which is making aluminium long span roofing sheets or aluminium step tile roofing sheets separately. Compared with two machines, this double layer roll forming machine can occupy less workshop room and the machine cost is lower as well. The main components consist of uncoiler, double guilder, double corrugating system, cutting device, plc controller and products supporters.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanised Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALU ZINC) Simple or Prepainted in COILS
Prepainted Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this double layer roof sheet roll forming machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
