Corrugated & IBR Profile Roofing Sheet Roll Forming Machines

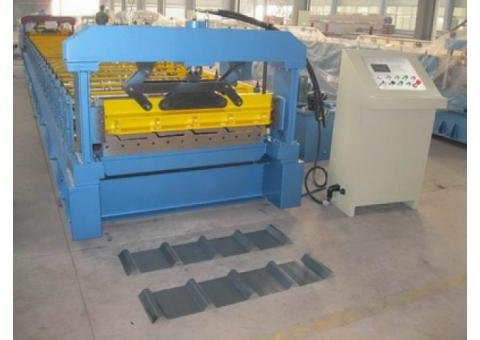

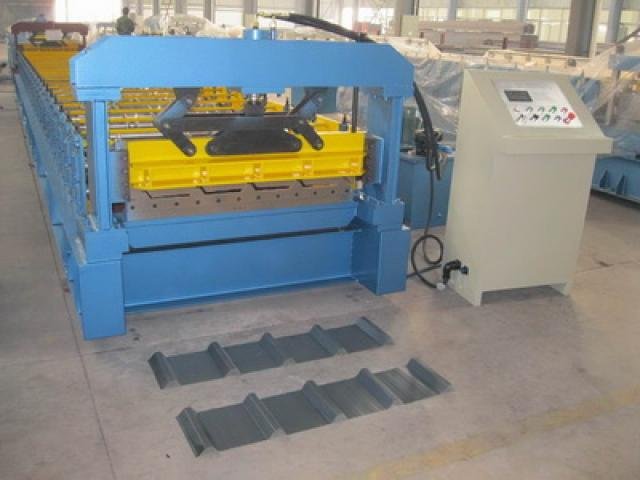

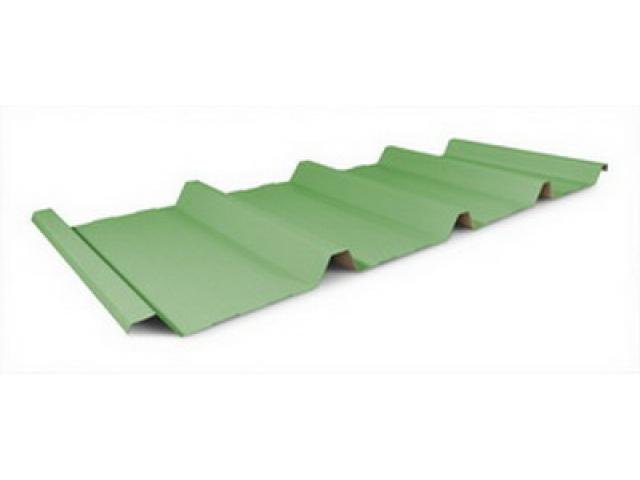

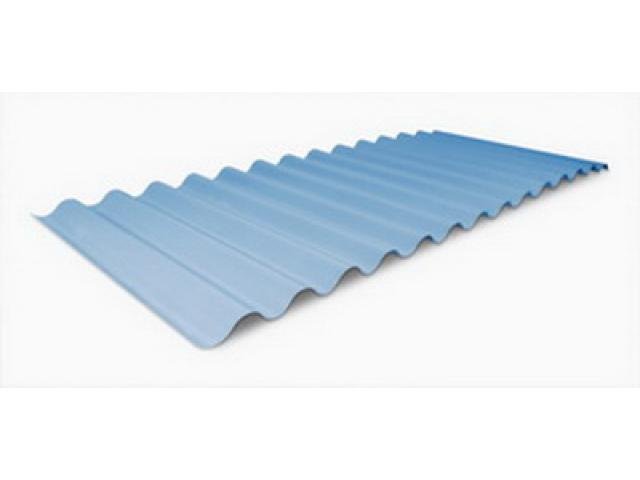

We are a professional manufacturer and exporter for steel & aluminium roll forming machinery. The range of our products are corrugated profile roof sheet forming machine, IBR profile roof & wall sheets roll forming machine, ridge cap forming machine, roofing glazed tile forming machine, C & Z purlin roll forming machine, floor deck roll forming machine, roller shutter forming machine and so on. The advertised roof sheeting machine is a complete automatic production machine for making steel corrugated & 686 IBR profiled roofing sheets. It consists of decoiler, guilding device, roll forming machine, cutting device, supporting tables and Mitsubishi PLC control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALUZINC) Simple or Prepainted in COILS
Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 15~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment
