Corrugated Aluminum Zink Roofing Panel Roll Former Machine

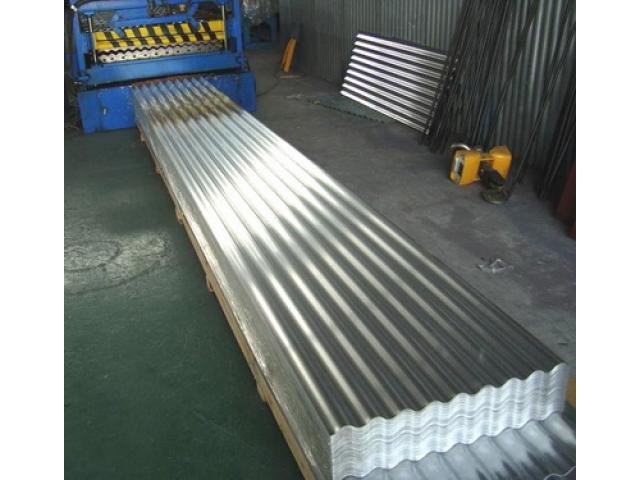

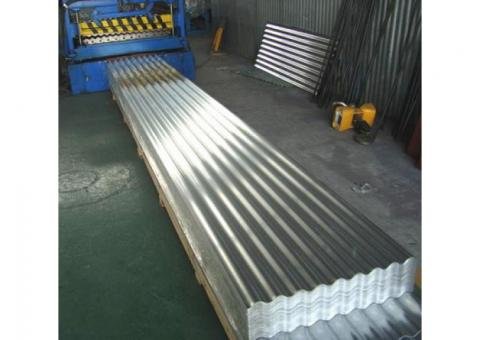

We are supplying customers with all kinds of metal roof sheet roll forming machies, such as corrugated aluzink roof sheet making machine, long span roof sheet roll forming machine, step tile roofing sheet roll forming machine, metcoppo tile roofing sheet roll forming machine, ridge caps roll forming machine and so on. This roof sheet roll forming machine is an advanced metal rollformer, which is manufacturing corrugated alluminium zinc roofing sheets with a high speed. The roof panel roll forming machine consists of decoiler, sheet guiding equipment, roll forming system, cutter, support tables, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALU ZINC) Simple or Prepainted in COILS
Prepainted Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this corrugated aluzinc roof sheets roll forming machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
