Corrugated Aluminum Roof Sheets Production Machines

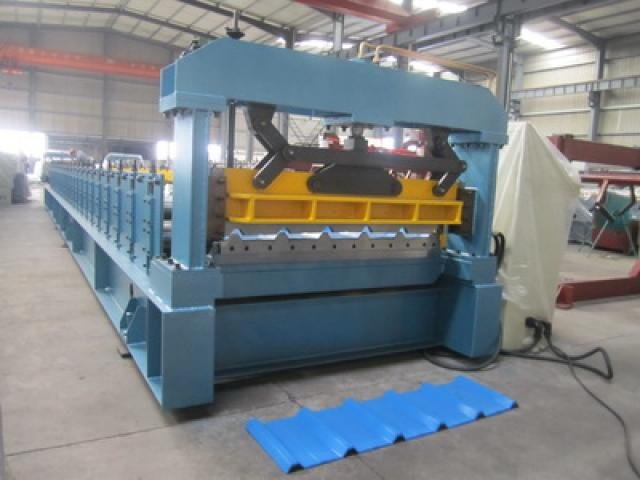

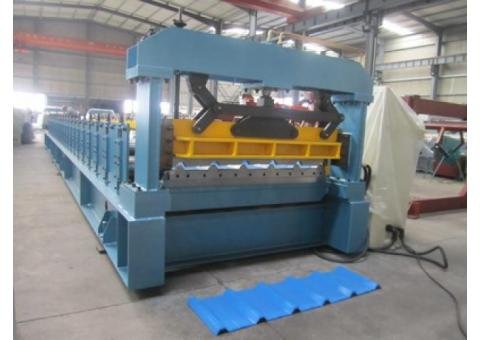

We are supplying customers with all kinds of metal roof sheet producing machies, such as long span roof sheet producing machine, step tile roofing sheet producing machine, metcoppo tile roofing sheet producing machine, ridge caps producing machine and so on. This roof sheet producing machine is an advanced metal roll forming machine, which is manufacturing corrugated long-span roofing sheets with a high speed. The roof panel producing machine consists of decoiler, sheet guiding equipment, roll forming system, cutter, support tables, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALU ZINC) Simple or Prepainted in COILS
Prepainted Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this long span alluminium roofing sheet producing machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
