Aluminum Metcoppo Roof Step Tile Cladding Sheets Manufacturing Machine For Sale
₦ 3,000,000
008615868142550
Description
ALUMINIUM METCOPO ROOFING STEPTILE SHEET MAKING MACHINES

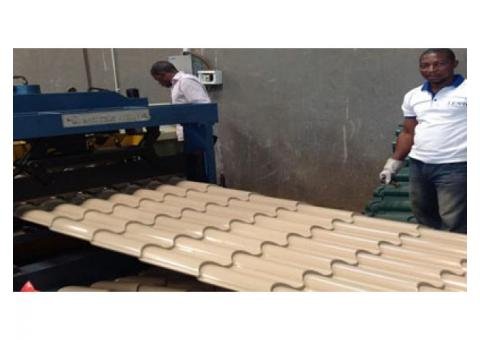

This metcoppo steptiles corrugating machine is an advanced metal roll former, which is manufacturing coloured roofing step-tile sheets with a high speed. This corrugated roof stepped tile profiles panel roll forming machine consists of decoiler, sheet guiding equipment, rollforming system, step presser, cutter, support table, hydraulic system, and control system.
MAIN PARAMETERS:
1. Material Spec.: 235MPA; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALUZINC) Simple or Prepainted in COILS
Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 5.5kw
5. Working speed: 2.5-4.5m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.
Low Machine Cost/High Machine Quality/Short Time for Recouping Investment
If you want to get more information about this steel & alluminium metcoppo roof step tiles profile rolling machine, such as price, delivery time, payment and so on, please contact us by the following information:
Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
Professional Manufactuer of Steel & Aluminium Roll Forming Machine, Roll Former, Corrugating Machine, Rolling Plant, Rollformer from China
