Professional Manufactuer of Steel & Aluminium Roll Forming Machine, Roll Former, Corrugating Machine, Rolling Plant, Rollformer from China

Aluminium Roof Sheet Roll Forming Machine

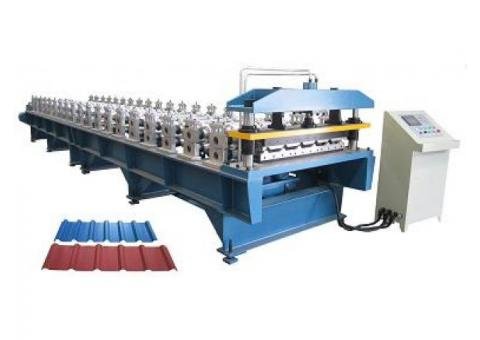

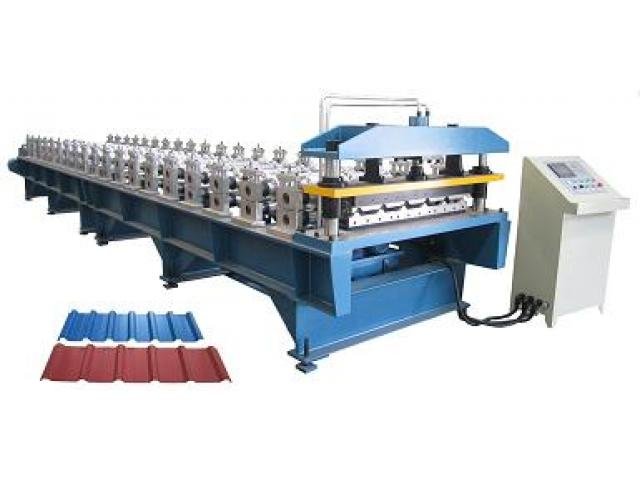

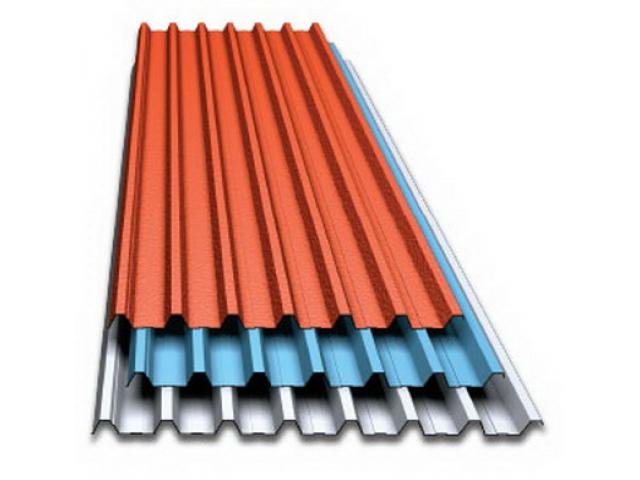

As a professional manufacturer of aluminum roof sheet roll forming machines in China, we are supplying customers with all kinds of rollforming equipment to produce aluminium long span roof sheets, aluminium met copo tile roof sheets, aluminium step tiles roof sheets, gutter sheets, flashing board and so on. The advertised aluminum long span roofing sheet roll forming machine is manufacturing alluminium conventional long-span roof cladding sheets with a high speed. This conventional aluminium roof sheet roll forming machine consists of decoiler, sheet guiding equipment, rollforming system, cutter, support table, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm-0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALUZINC) Simple or Prepainted in COILS
Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: Mitsubishi PLC control panel, transducer and touching screen imported from Japan
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this aluminium roof sheet roll forming machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
