Aluminium Metcoppo Roofing Sheets Making Machine

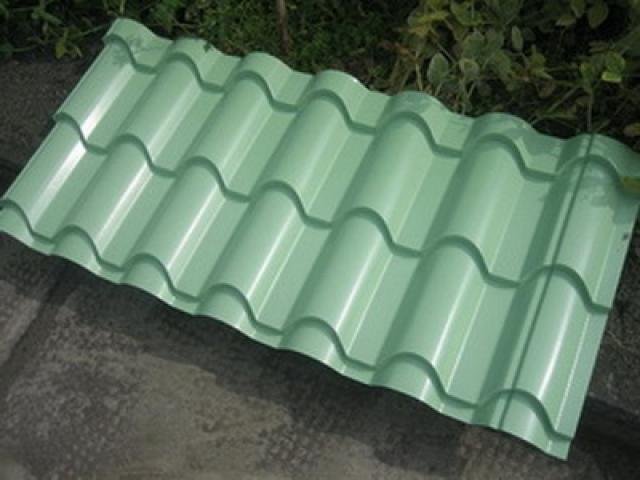

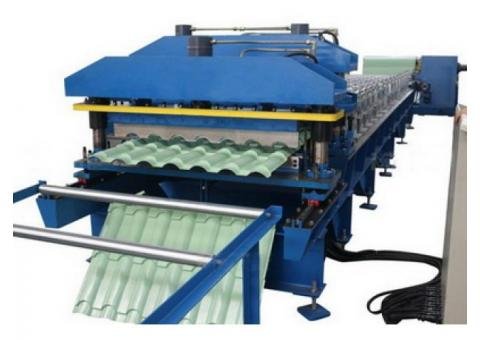

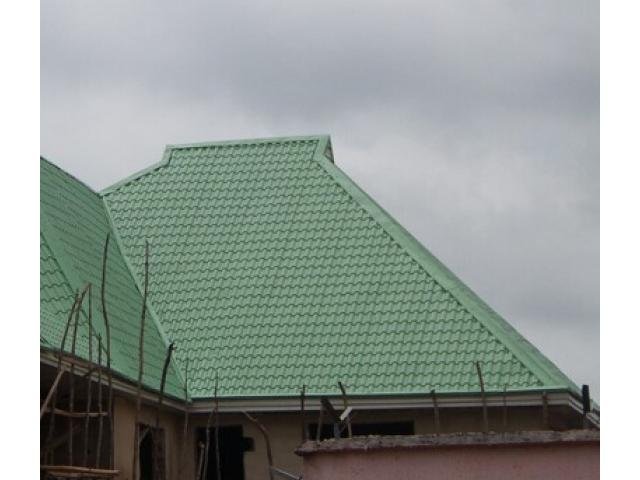

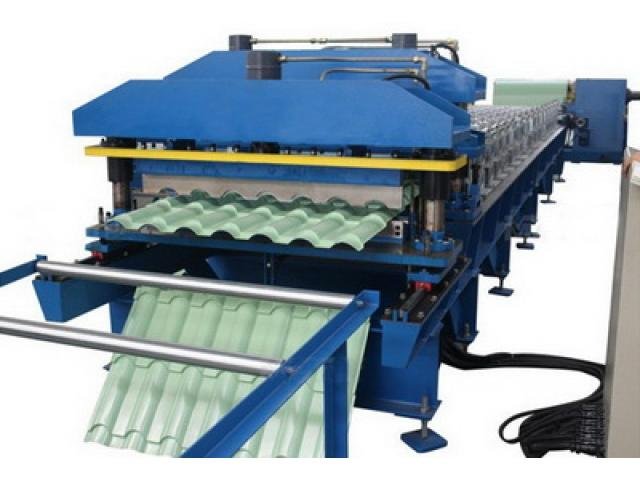

As a professional manufacturer of aluminium roof sheets forming machines, we are supplying customers with traditional normal long span roof sheets forming machine, corrugated zinc roof sheet forming machine, metcoppo tile roof sheets forming machine, alluminum steptiles roofing sheets forming machine, rain gutter panels roll forming machine, flashing board bending machine and so on. The advertised aluminium corrugating machine is making alluminium metcopo steptile roof cladding sheets with a high quality. This metcoppo steptile roofing sheet roll former machine consists of decoiler, sheet guiding equipment, rollforming system, pressing device, cutter, support table, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm-0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanized Steel Sheets in COILS (PPGI)
Galvalume Steel (ALUZINC) Simple or Prepainted in COILS
Colored Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 5.5kw
5. Working speed: 3-4m/min
6. PLC: Mitsubishi PLC control panel, transducer and touching screen imported from Japan
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this aluminum metcppo step tile roof forming machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
