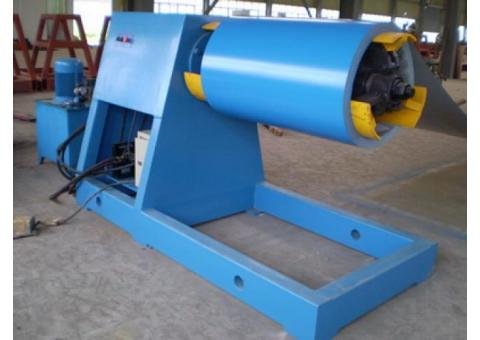

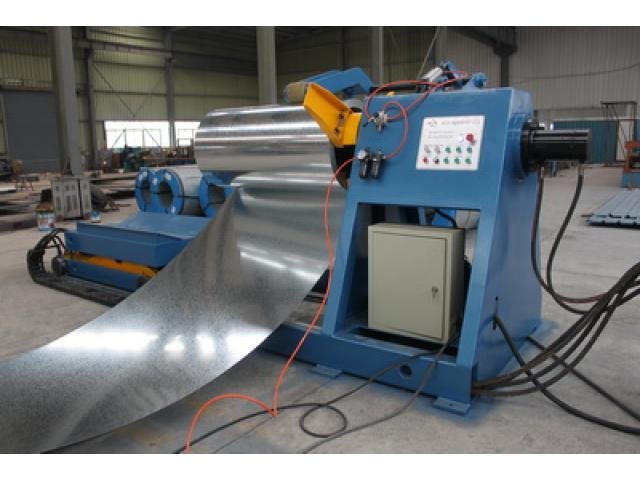

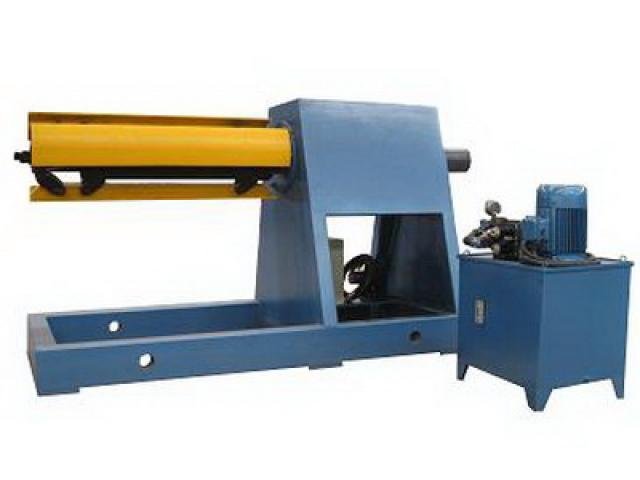

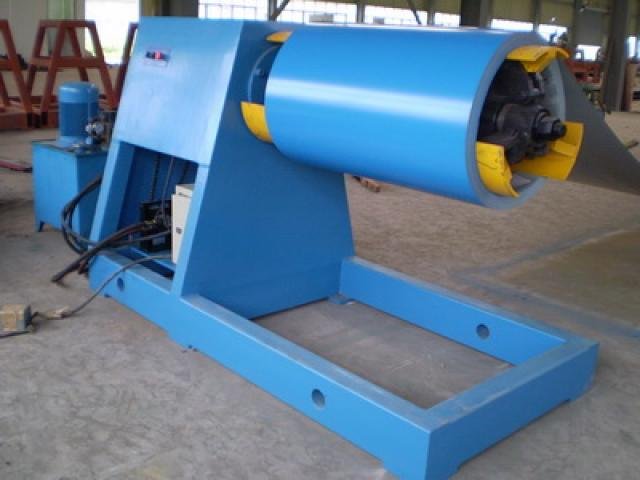

Description of Five Tons Automatic Powered Hydrualic Decoiler

This automatic uncoiler with the capacity of 5 tons or more adopts hydraulic power to forward, reverse, expand or loose the aluminium & steel coil automatically. This uncoiler is used to work together with aluminium & steel roof sheet corrugating machine, aluminium & steel roof step tile roll forming machine and so on. The uncoiling speed can be regulated accroding to the working speed of the roll forming machine. With this uncoiler, the working condition of aluminium corrugating machine will be more stable and the finished long span roofing sheets and step tile roofing sheets will be produced with a better tolerance.

For lifting dolly

1) Capacity: See the type of uncoiler, max. 5 tons.
2) Speed: 6m/ min.
3) Lifting: Max. 5500mm.
4) Moving: Max. 3000mm.

For decoiler

1) Capacity: See the type of uncoiler, max. 5tons.
2) Inner dia: 508mm, and 610mm (gasket is required).
3) Width: Max. 1500mm.
4) Center adjust: Max. 250mm.
5) Equipped with optical sensor, laid before decoiler, if sheet is close to sensor, it will stop releasing coil sheet; If sheet leaves sensor, the decoiler will release coil sheet.

For hydraulic

1) Max. Hydraulic pressure: 16 Mpa.
2) Motor power: 10.5 KW.
3) Air pressure: 0.9 Mpa.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment
