Check with seller Box Profile Roofing Sheet Making Machine For Sale Xiaoshan

Published date: November 7, 2014
  • Location: Xiaoshan, Hangzhou

Professional Manufactuer of Steel & Aluminium Roll Forming Machine, Roll Former, Corrugating Machine, Rolling Plant, Rollformer from China

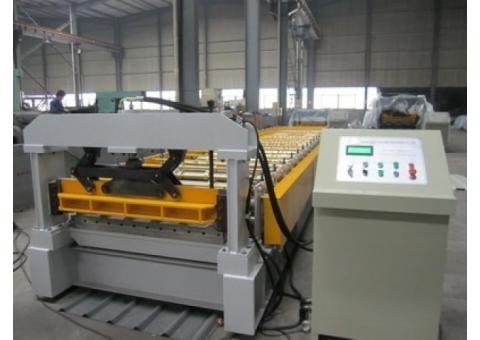

Box Profile Aluminium Roof Sheets Production Machine

We are supplying customers with all kinds of aluminium & steel roll forming machine, such as long span roof sheet roll forming machine, step tile roofing sheet roll forming machine, metcoppo tile roofing sheet roll forming machine, ridge caps bending machine and so on. This roof sheet roll forming machine is an advanced metal rollformer, which is manufacturing box profiled long-span roofing sheets with one meter effective coverage. The roof panel roll forming machine consists of decoiler, sheet guiding equipment, roll forming system, cutter, support tables, hydraulic system, and control system.

MAIN PARAMETERS:

1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanised Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALU ZINC) Simple or Prepainted in COILS
Prepainted Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.

Low Machine Cost/High Machine Quality/Short Time for Recouping Investment

If you want to get more information about this box profile roof sheet making machine, such as price, delivery time, payment and so on, please contact us by the following information:

Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China


Phone Number: 008615868142550
Price Negotiable: Yes
